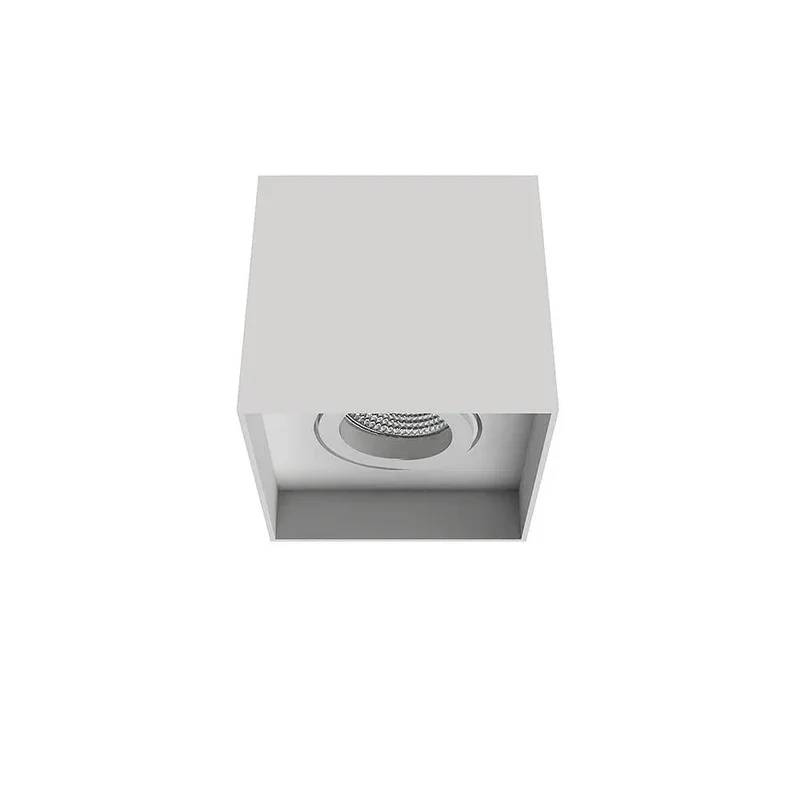

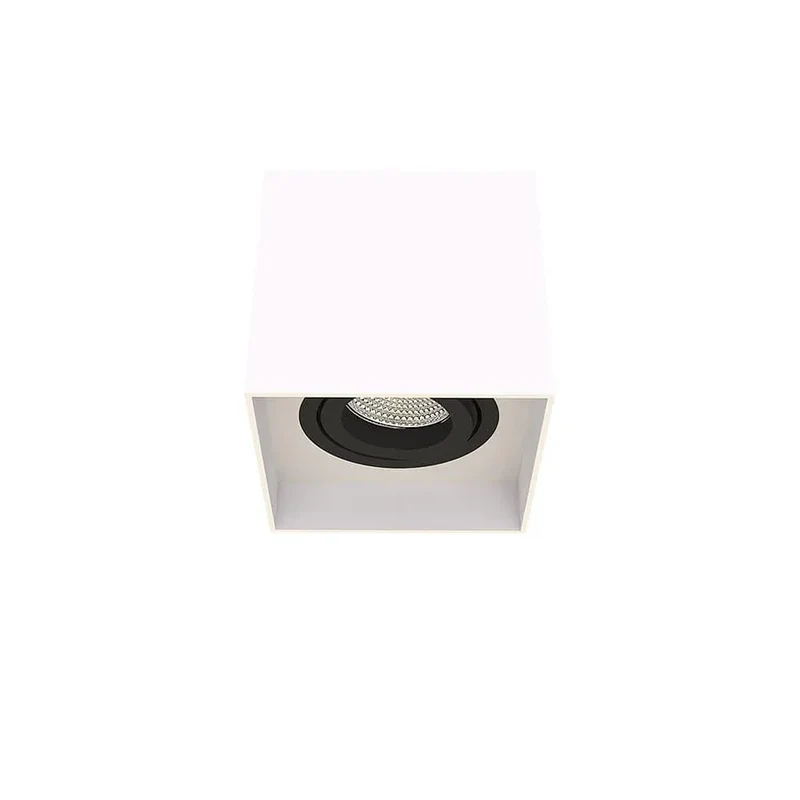

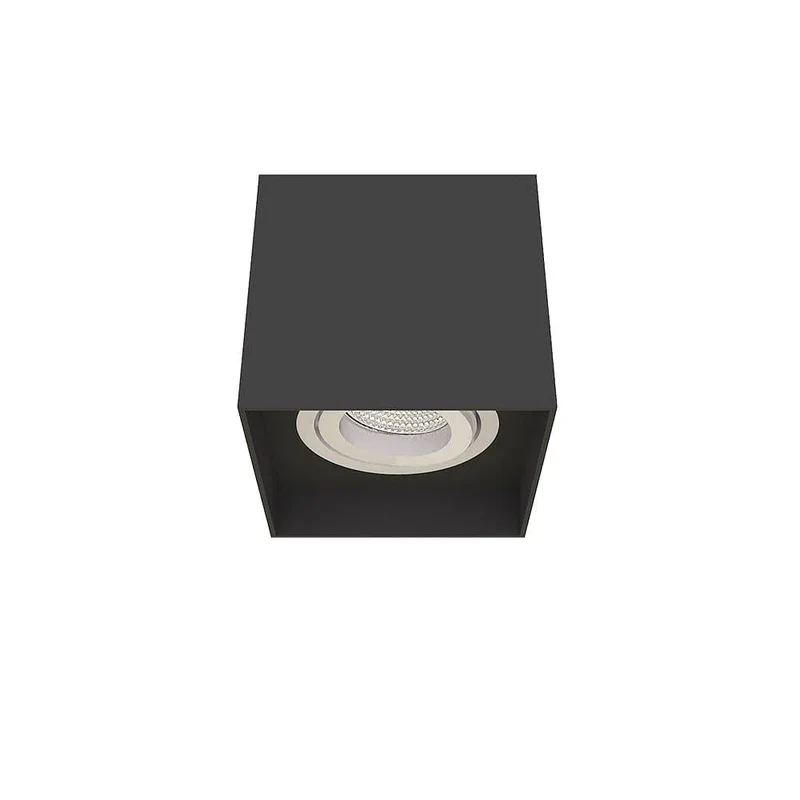

Anti-glare, RGBW LED Surface Mounted Square Spotlight

Anti-Glare RGBW PWM LED Surface-Mounted Square Spotlight  For LED Module Ceiling Spotlight

TILLUME RGBW Spotlight offers a versatile lighting solution suitable for various settings, including private, commercial, and event applications. This spotlight is ideal for ambient and effect lighting, as well as for daily use in any installation situation. It features the following capabilities:

• Individual Color Control: Each color (red, green, blue, warm white) can be controlled separately, allowing for versatile usage with any PWM dimmer on a 24V basis.

• Color Temperature Spectrum: The spotlight covers a color temperature spectrum of warm white to cold white through different color mixtures.

• Continuous Color Mixing: The spotlight enables continuous mixing of the individual colors, offering flexibility in creating custom lighting effects.

Overall, the TILLUME RGBW Spotlight provides a wide range of lighting options, making it a suitable choice for a diverse range of lighting need.

Anti-Glare, Eye Protection

The square ceiling spotlights, with hidden bulb design, which provides a halo effect in lighting, less glare and better eye protection. The ceiling bracket and lampshades are made of high quality aluminium with black or white paint, rustproof, good heat dissipation.

Technical Data:

- Family: LED Surface-mounted Spotlight
- Material: Aluminium
- Color: White/Black
- Protection Class: IP20
- Voltage: 24V( should be used with 24V driver)
- Wattage: 7.5W
- Chip type: COB
- Color temperature: RGB+Warm White 2850K@Warm White Channel and                          5000K@RGBW all Channel on
- Color rendering index CRI: >90(WW Channel)
- Luminous flux: approx. 400 lm (combined)
- Max. current consumption: 0.31A
- Beam angle: 60 degrees
- Dimmable: Yes, up to 1% with the appropriate PWM dimmers
- Spots can be swiveled 20°
- Installation Height: 115mm
- Installation Width: 90mm
- Installation Length: 90mm
- Installation Location: Ceiling
- Area of ​​application: Indoor
- Style: Modern & Minimalist

Professional design for tasteful furnishings

Are you wondering how many dimmable LED surface-mounted spotlights you need for a room? For a living room or hallway with a size of approx. 10 m², you should use 4 surface-mounted spotlights. For work rooms, the kitchen or a bathroom of the same size, we recommend 8 surface-mounted spotlights.

The guideline value is a ceiling height of 2.60m and an illuminance suitable for the basic lighting at table height (300 lux warm white).
