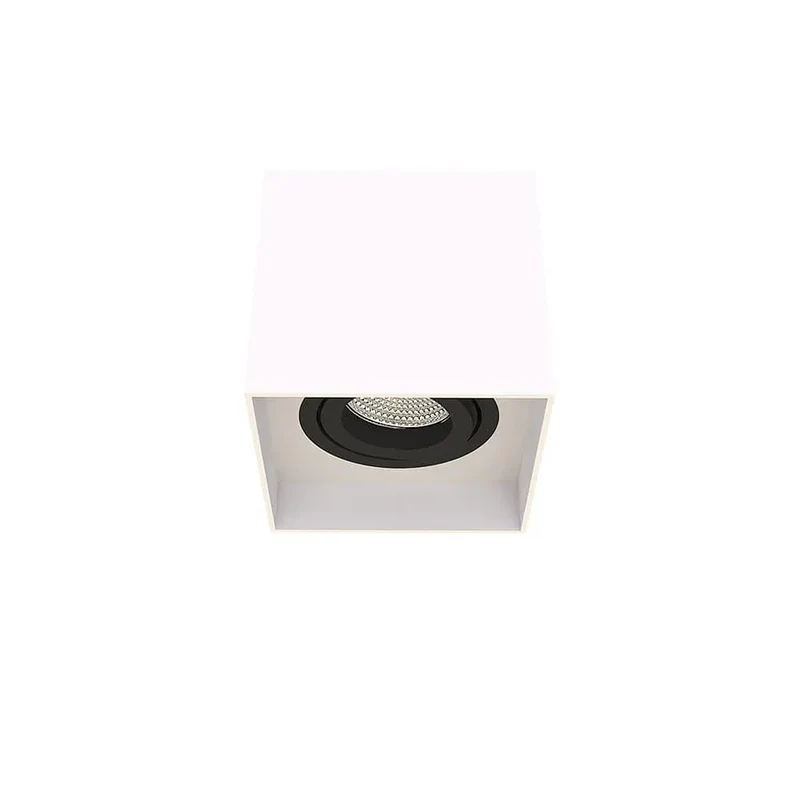

Anti-glare, Tunable White 4+4W, LED Surface Mounted Square Spotlight

Anti-Glare Tunable White 4+4W PWM LED Surface-Mounted Square Spotlight  For LED Module Ceiling Spotlight

Compared with standard LED Ceiling Spot light, TILLUME tunable white downlights provide an unparalleled degree of freedom for users to adjust the lighting effects they need. Users can change the color temperature while maintaining the brightness level, and vice versa. Users can choose their preferred color temperature range, power, or fixture design according to their needs. Our tunable white downlights typically cover color temperature ranges from 2200K to 6500K, all with CRI 90+ color rendering. Typical rated power is 4W+4W, 6W+6W, and 8W+8W. Our dynamic lighting solutions, would control the tunable white downlights.

Anti-Glare, Eye Protection

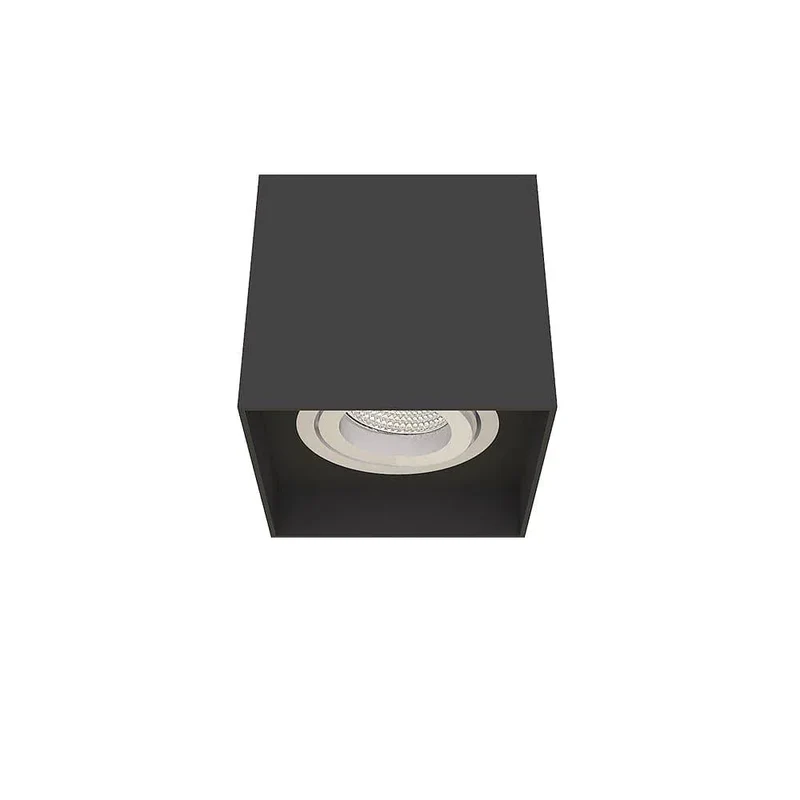

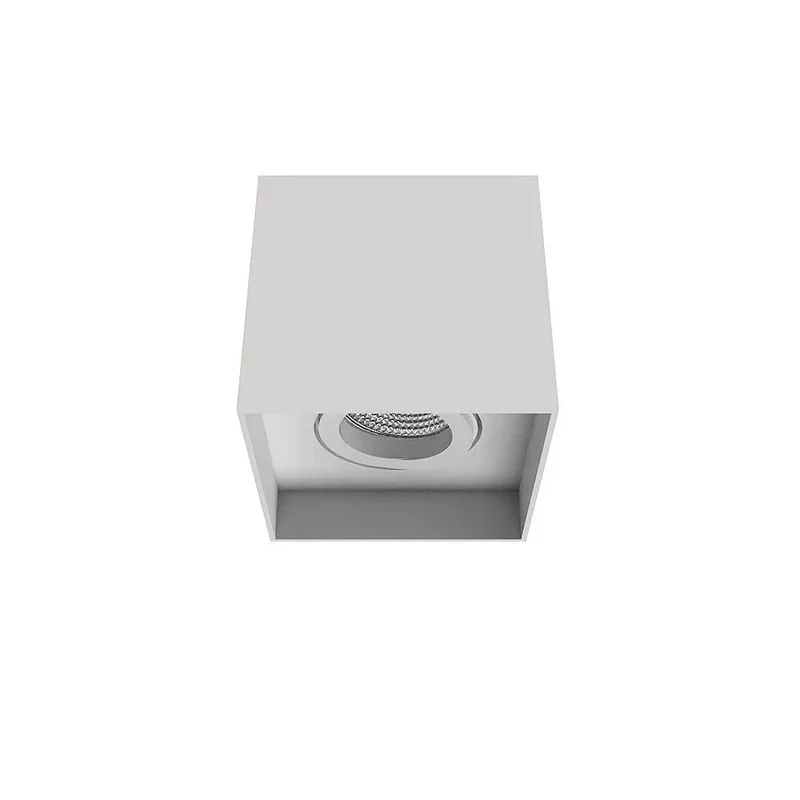

The square ceiling spotlights, with hidden bulb design, which provides a halo effect in lighting, less glare and better eye protection. The ceiling bracket and lampshades are made of high quality aluminium with black or white paint, rustproof, good heat dissipation.

Technical Data:

- Family: LED Surface-mounted Spotlight
- Material: Aluminium
- Color: White/Black
- Protection Class: IP20
- Voltage: 24V( should be used with 24V driver)
- Max. power consumption: 8W
- Chip type: COB
- Color temperature: 2200K-6500K
- Color rendering index CRI: >95
- Luminous flux: approx. 710 lm (combined)
- Max. current consumption: 0.33A
- Beam angle: 60 degrees
- Dimmable: Yes, up to 1% with the appropriate PWM dimmers
- Spots can be swiveled 20°
- Installation Height: 115mm
- Installation Width: 90mm
- Installation Length: 90mm
- Installation Location: Ceiling
- Area of ​​application: Indoor
- Style: Modern & Minimalist

Professional design for tasteful furnishings

Are you wondering how many dimmable LED surface-mounted spotlights you need for a room? For a living room or hallway with a size of approx. 10 m², you should use 2 surface-mounted spotlights. For work rooms, the kitchen or a bathroom of the same size, we recommend 3 or 4 surface-mounted spotlights.

The guideline value is a ceiling height of 2.60m and an illuminance suitable for the basic lighting at table height (300 lux warm white).
