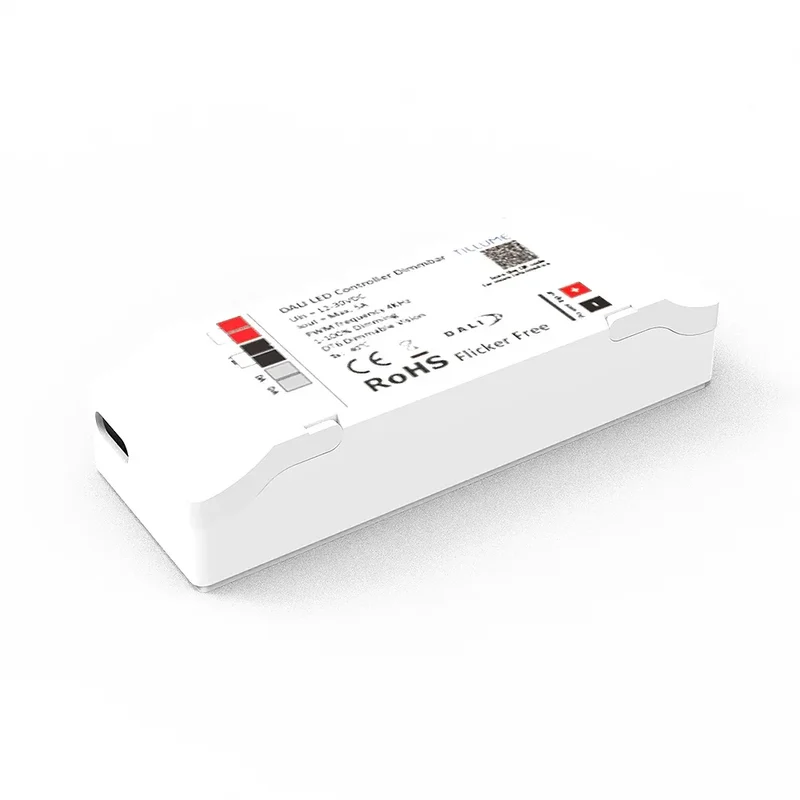

DALI LED Dimmer | 24VDC 5A DT6 Dimmable

The DALI Dimmer is a constant voltage dimming controller with 1 channels, and the channel support max.5A output. TILLUME DALI led controller complies to standard DALI protocel with 1 DALI address to controller 1 channel.

Suitable for controlling LED stripes or LED Spots with an operating voltage of 12V - 24V DC

Features

Input Voltage: 12-24V DC,

Max. Support Current: 5A per channel

Max. Support Output Wattage: 120W

Dimming Range: 1% - 100%

PWM Frequency: 3.9KHz

Operating Mode DT6: One DALI Address for control of brightness level

Low standby power consumption
