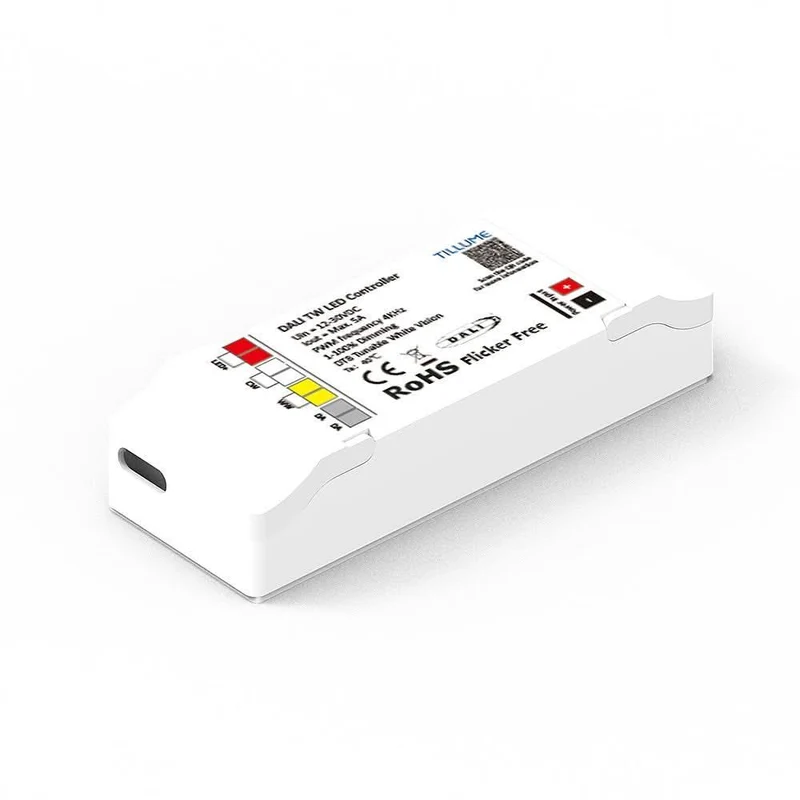

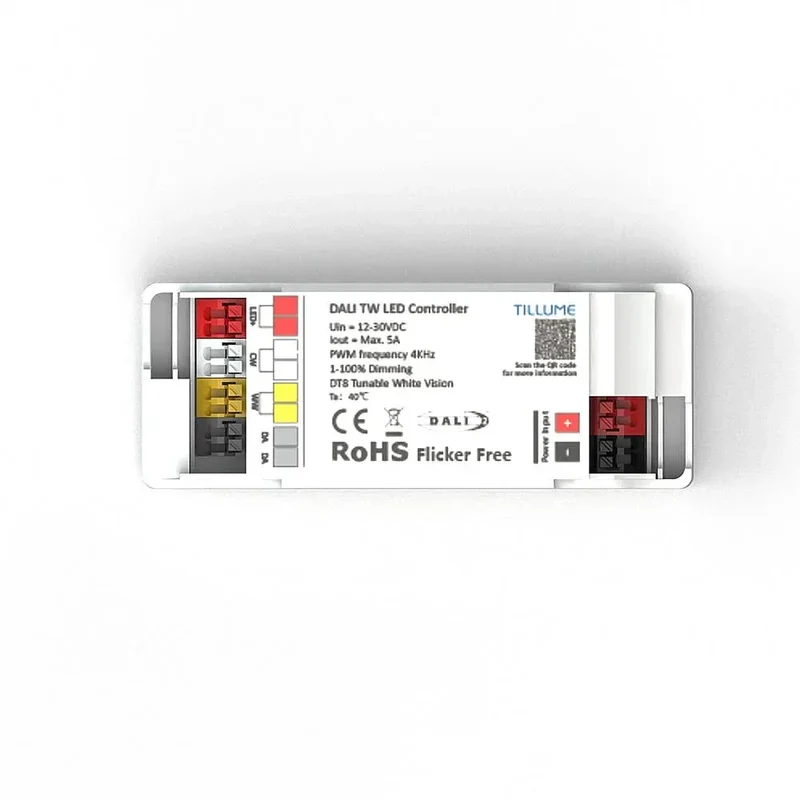

DALI LED Dimmer | 24VDC 5A DT8 Tunable White CCT

The DALI Dimmer is a constant voltage dimming controller with 2 channels, and each channel support max.5A output. TILLUME DALI CCT tunable white led controller complies to standard DALI protocel with 1 DALI address to controller 2 channel.

Suitable for controlling CCT LED strips or Tunable White LED Spots with an operating voltage of 12V - 30V DC

Features

Input Voltage: 12-30V DC
Rated Input Voltage 24V DC
Max. Support Current: 5A per channel
Max. Support Output Wattage: 120W
Dimming Range: 1% - 100%
PWM Frequency: 3.9KHz
Operating Mode DT8: One DALI Address for the independent control of brightness level and color temperature
Low standby power consumption

Main Function List

IDimming curve selectable, default factory setting is DALI standard logarithmic dimming curve.
Gradient time and rate adjustable
Color temperature can be customized, with factory settings for the warmest and coldest colors at 2200/6500K
Support human factors lighting settings
Support open circuit detection and error reporting, current detection and protection. The system automatically shuts off when overcurrent occurs and automatically turns on after 6 seconds. If the fault is resolved, it will automatically recover
