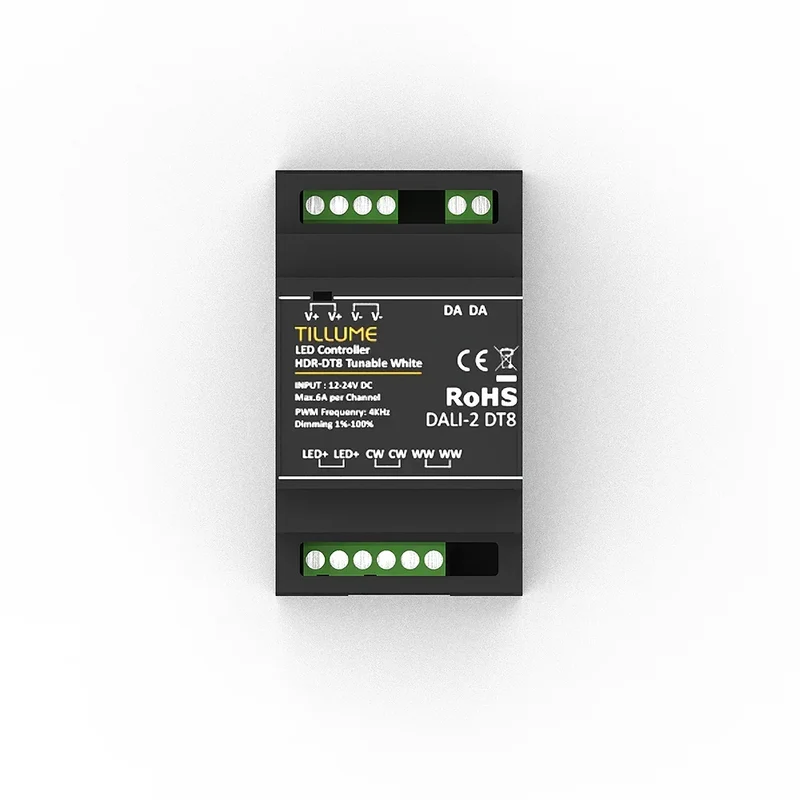

DIN 3SU DALI LED Dimmer | 24VDC 6A DT8 Tunable White

The DALI Dimmer is a constant voltage dimming controller with 2 channels, and each channel support max.6A output. TILLUME DALI CCT tunable white led controller complies to standard DALI protocel with 1 DALI address to controller 2 channel.

Suitable for controlling CCT LED strips or Tunable White LED Spots with an operating voltage of 12V - 24V DC

Features

Input Voltage: 12-24V DC,

Max. Support Current: 6A per channel

Max. Support Output Wattage: 144W

Dimming Range: 1% - 100%

PWM Frequency: 4KHz

Operating Mode DT8: One DALI Address for the independent control of brightness level and color temperature

Low standby power consumption
