Full Spectrum LED Spot Tunable White | 60° CRI95 2200-6500K 24V 8W+8W

Eye Safe High CRI Sunlight | Full Spectrum Ra95 24V Tunable White LED Spots 2200-6500K

Feature

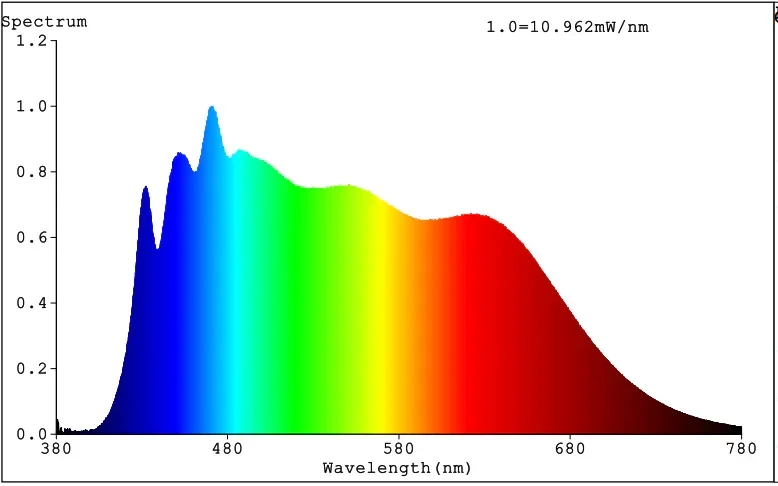

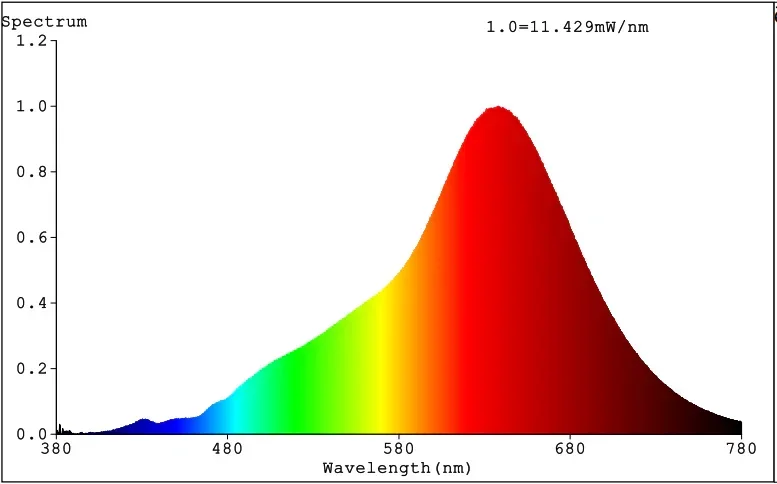

TILLUME tunable white LED Spot adopts multi-band LED full-spectrum COB solution, and each CCT fits the solar spectrum curve, making the light more natural, the color gamut more complete, and improving the R9 value, perfectly presenting the true color of the object.

Technical Data

Operating voltage: 24V DC
Max. current consumption: 0.35A
Max. power consumption: 8W
Beam angle: 60 degrees
Light color: DTW - white dynamic

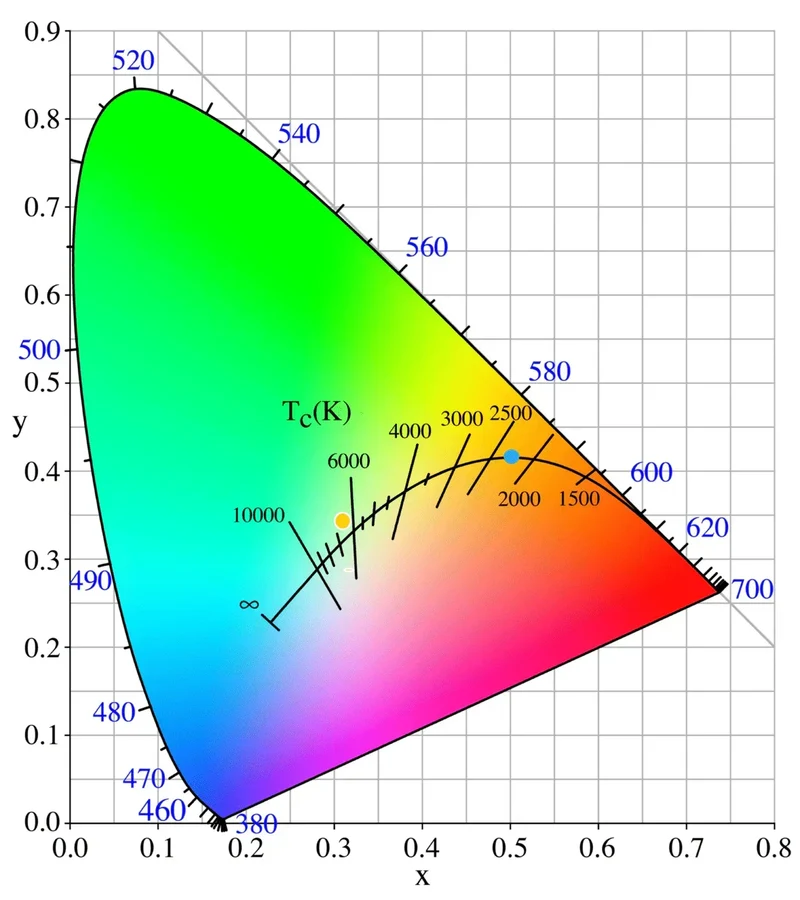

Color temperature: approx. 2200 - 6500K
Color rendering index CRI: >95 Ra
Luminous flux: approx. 500-800
Operating voltage: 24V DC
Power: 8W (8W CW + 8W WW)
Chip type: COB
lifetime: >50,000 hours
Operating temperature: -25 degrees Celsius to +60 degrees Celsius
Storage temperature: -40 degrees Celsius to +80 degrees Celsius
Dimensions: 50 mm with a diameter of 49 mm
Connecting cable: 3 wires and 150 mm length

Operated With KNX System

Controller by MDT TECHNOLOGIES

Avaliable for the item as below
AKD-0424R.02
AKD-0424R2.02
AKD-0424V.02
AKD-0324V.02
AKD-0224V.02

Warm Tips: When you use below dimmer, you should open balance wattage function in software.

Operated With DALI System

Controller by LUNATONE

Avaliable for the item as below
DALI LED Power Supply(DT8):
89453849-CWW-24V
DALI LED Dimmer (CV, DT8):
89453836(4A)
86458673(8A)
89453838(10A)
89453841(16A)
89453841-HS(16A DIN Rail)
