Full Spectrum LED Spot Tunable White | 60° CRI95 2400-4000K 24V 8W+8W

Eye Safe High CRI Sunlight | Full Spectrum  Ra95 24VTunable White LED Spots 2400-4000K| 8W+8W Wattage Balance

controllable with DALI DT8 or Balance Dimmer

Feature

Human-perceived natural white tones are aligned along a distinctively curved trajectory in the chromaticity space – the Planckian Locus (represented by the black curve in the diagram). TILLUME tunable color temperature (CCT) spot module (2400K-4000K) address the inherent challenge of mixed-light color deviation through a narrowed CCT range.

This optimized spectral tuning significantly reduces mid-range chromatic aberrations that typically manifest as unnatural magenta/pink tints in conventional wide-range CCT systems. By confining the adjustment to 2400K-4000K, the blended light output adheres more closely to the Planckian Locus, effectively mitigating color distortion and delivering perceptually natural illumination that aligns with human visual preferences."

TILLUME tunable white LED Spot adopts multi-band LED full-spectrum COB solution, and each CCT fits the solar spectrum curve, making the light more natural, the color gamut more complete, and improving the R9 value, perfectly presenting the true color of the object.

Technical Data

Operating voltage: 24V DC
Max. current consumption: 0.35A
Max. power consumption: 8 W
Beam angle: 60 degrees
Light color: DTW - white dynamic
Color temperature: approx. 2400 - 4000K
Color rendering index CRI: >95 Ra
Luminous flux: approx. 530-750
Operating voltage: 24V DC
Power: 8W (8W CW + 8W WW)
Chip type: COB
lifetime: >50,000 hours
Operating temperature: -25 degrees Celsius to +60 degrees Celsius
Storage temperature: -40 degrees Celsius to +80 degrees Celsius

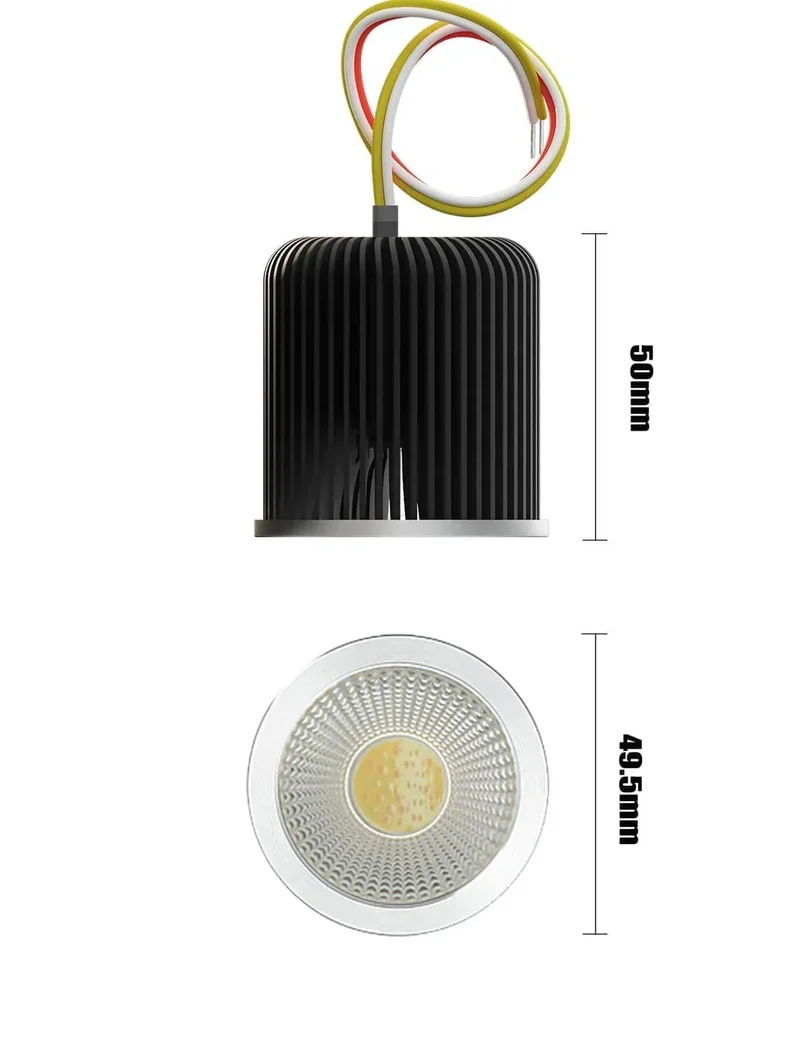

Dimensions: 50 mm with a diameter of 49 mm
Connecting cable: 3 wires and 150 mm length

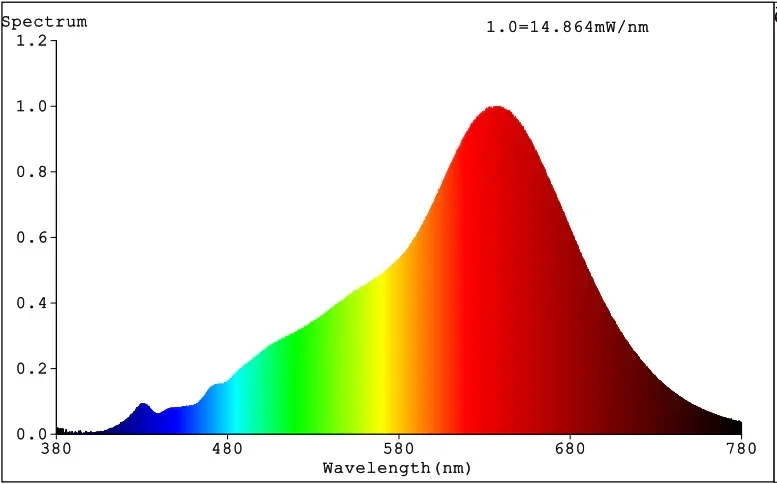

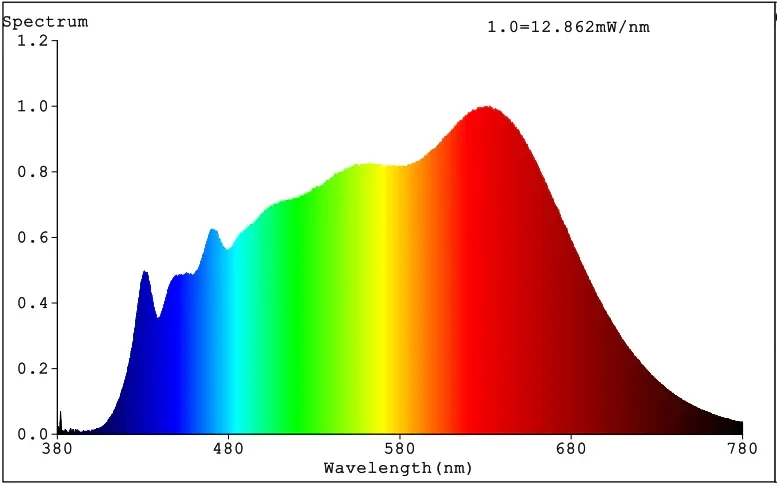

Click on the spectrum image to view the specification sheet

Operated With KNX System

Controller by MDT TECHNOLOGIES

Avaliable for the item as below
AKD-0424R.02
AKD-0424R2.02
AKD-0424V.02
AKD-0324V.02
AKD-0224V.02

Warm Tips: When you use below dimmer, you should open balance wattage function in software.

Operated With DALI System

Controller by LUNATONE

Avaliable for the item as below
DALI LED Power Supply(DT8):
89453849-CWW-24V
DALI LED Dimmer (CV, DT8):
89453836(4A)
86458673(8A)
89453838(10A)
89453841(16A)
89453841-HS(16A DIN Rail)

Recommend installation frames and surface-mounted housings:

Surface Mounted Luminaries Ceiling

Recessed Luminaries Ceiling

Pendant Luminaries
