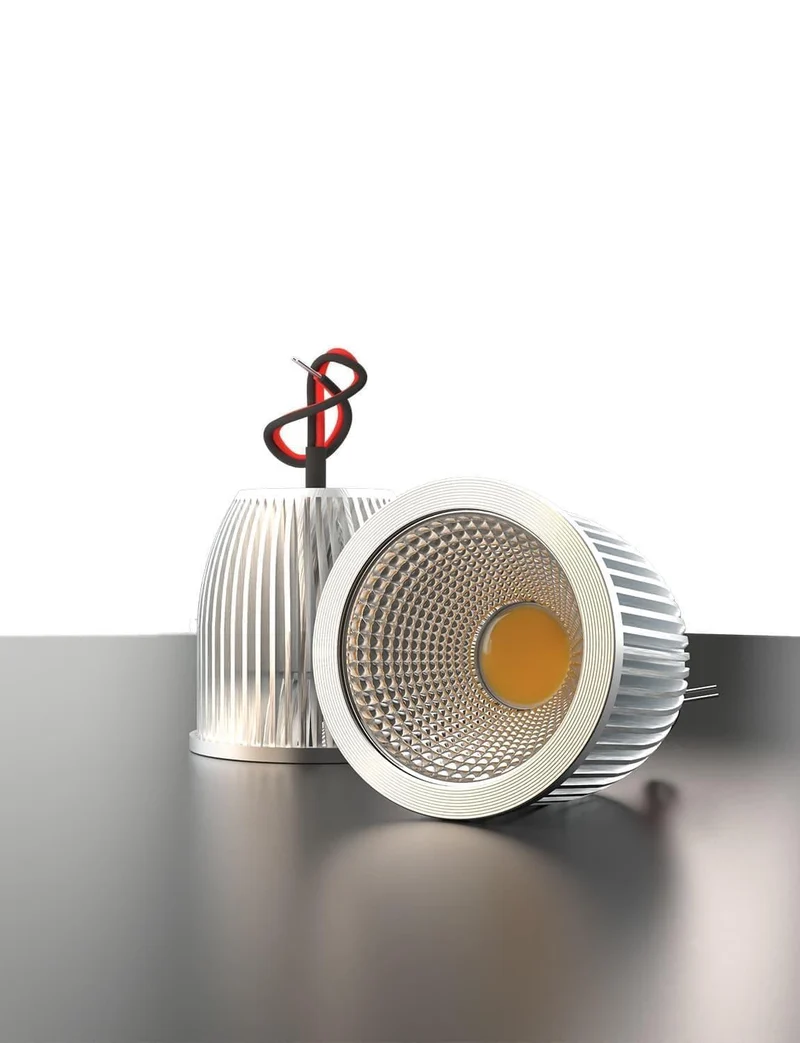

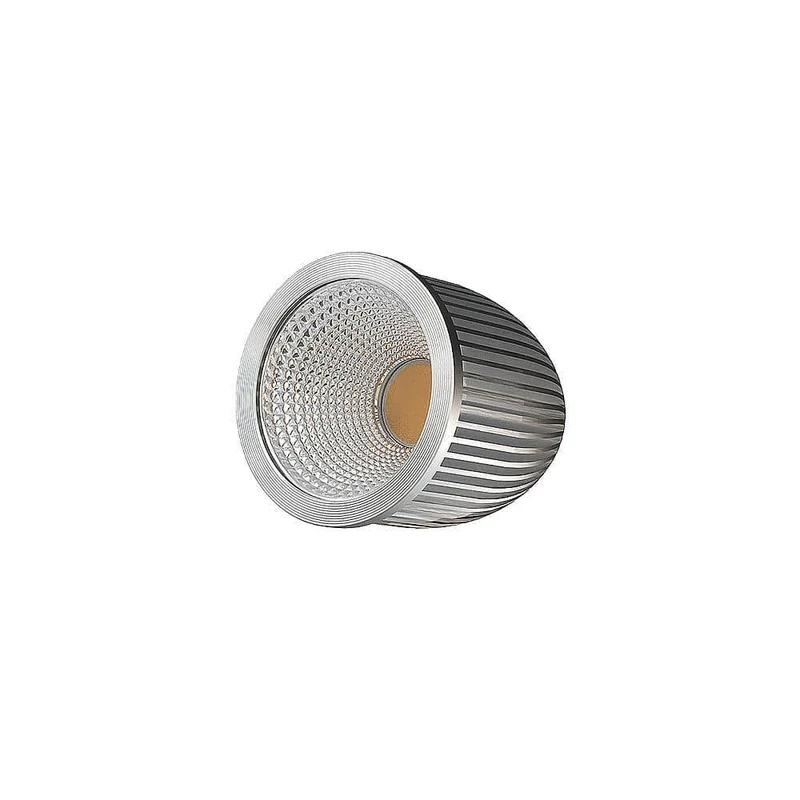

Natural White 4500K 24V Dimmable LED Spot Module

LED Spot Module NW 4500K PWM TILLUME natual white 4500K LED spot is the perfect solution for all applications that require a clearly aligned yet homogeneous light image.
Be it used in a private or business environment - with the TILLUME LED spot you will always achieve an optimal lighting result. With its light color of 4500 K and its very high color rendering CRI > 90 RA, the spot ensures natural illumination in the defined area.
The size in the form of a conv. MR16 lamp (diameter 50mm) allows installation in any conventional recessed spotlight for LV lamps or surface mounted ceiling spotlight. In addition to being used in newly planned lighting systems, the spot is also suitable for retrofit use in existing systems that are to be converted to modern LED technology in 24V technology.
The 24V constant voltage technology makes wiring in parallel extremely easy and enables linear dimming behavior of 0.1% - 100%, depending on the dimmer used. In addition to using KNX or DALI dimmers, it is also possible to operate the spot modules with PWM dimmers from Loxone, Homematic or Dresden Elektronik.

Areas of application:

- shop lighting - offices - medical practices - hotels - restaurants - furniture lamps - private housing

Product advantages:

- fits into existing MR16 lamp housings - light intensity comparable to halogen lamps MR16 (50 W) - integrated optics and heat sinks - high-quality aluminum housing - for electrical parallel connection - two-pole connection cable with 50 mm length

Technical data:

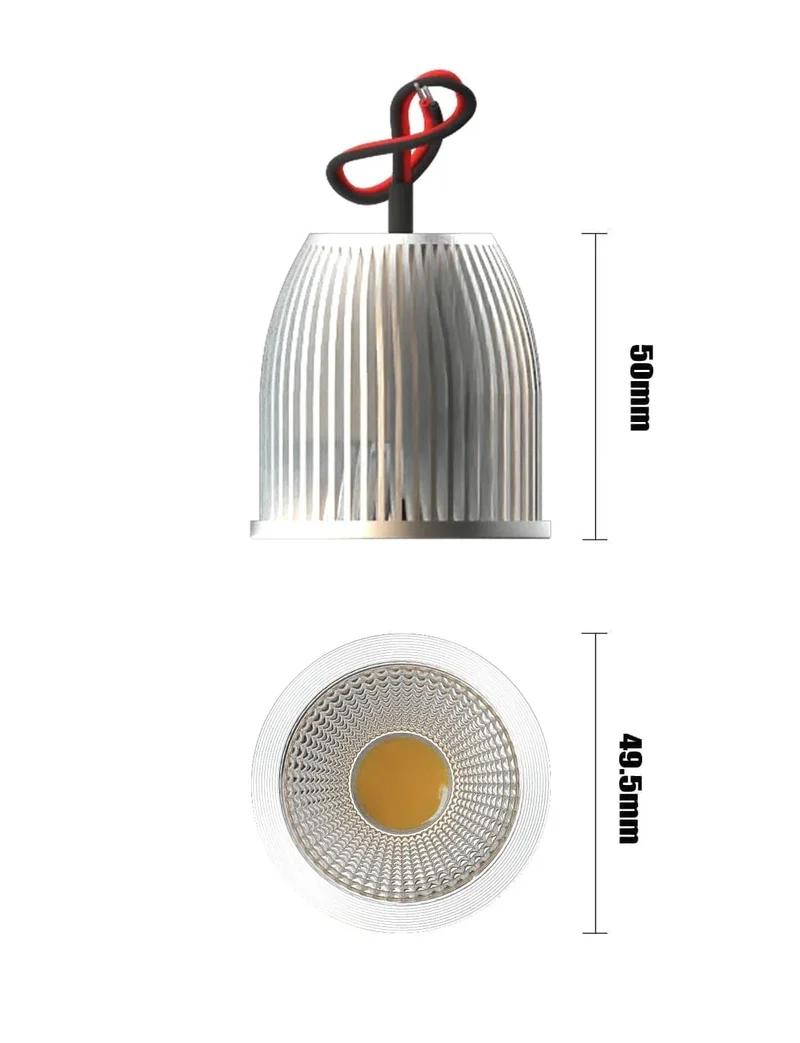

Operating voltage: 24 V DC Max. current consumption: 0.25 A@6W/0.333A@8W Max. power consumption: 6 W/8W Luminous flux: approx. 600 lm@6W/720LM@8W Color temperature: 4500 K Color rendering index CRI: 90 Ra Beam angle: 60 degrees dimmable: yes, up to 0.1% with corresponding PWM dimmers Chip type: COB Lifespan: >50,000 h Operating temperature: -25 degrees Celsius to +60 degrees Celsius Storage temperature: -40 degrees Celsius to +80 degrees Celsius Dimensions: 50 mm with a diameter of 49 mm connecting cable : 150 mm, open wire ends
