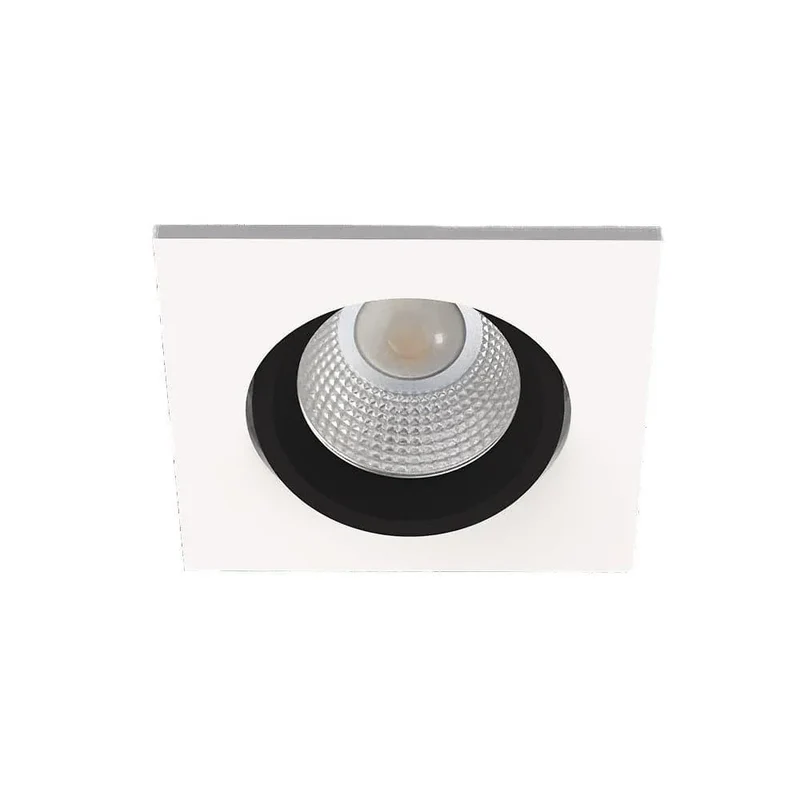

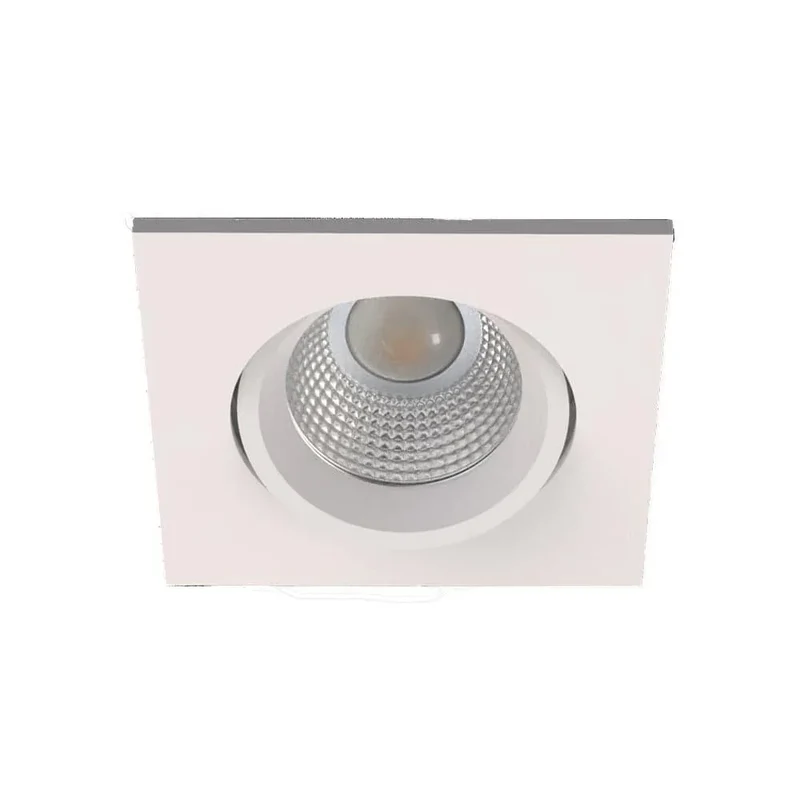

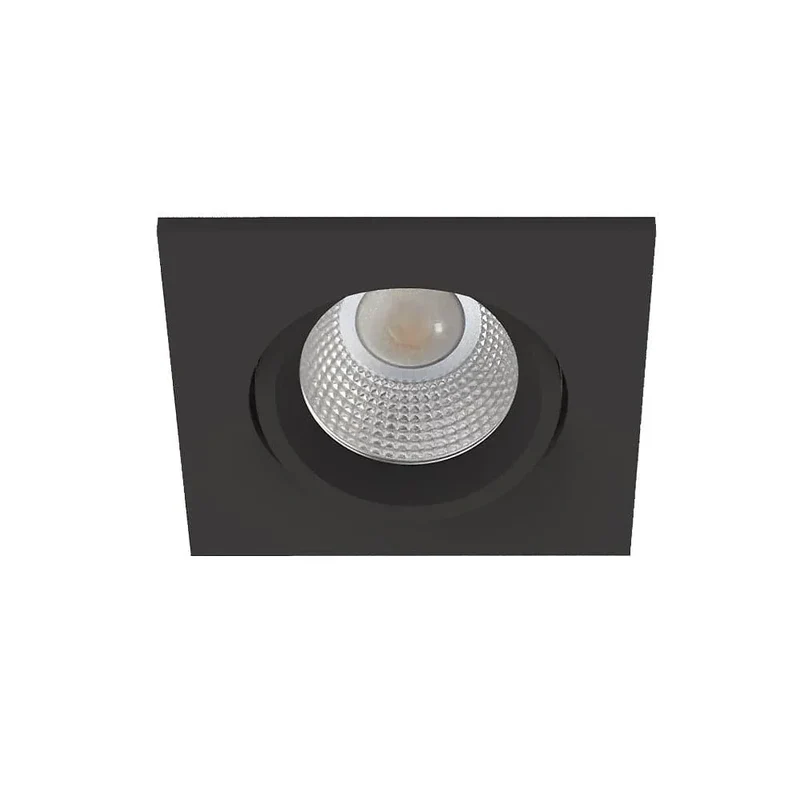

RGBW, 24V LED Recessed Square Spotlight

RGBW 24V Dimmable PWM LED Recessed Square Spotlight  For LED Module Ceiling Spotlight

TILLUME RGBW Spotlight offers a versatile lighting solution suitable for various settings, including private, commercial, and event applications. This spotlight is ideal for ambient and effect lighting, as well as for daily use in any installation situation. It features the following capabilities:

• Individual Color Control: Each color (red, green, blue, warm white) can be controlled separately, allowing for versatile usage with any PWM dimmer on a 24V basis.

• Color Temperature Spectrum: The spotlight covers a color temperature spectrum of warm white to cold white through different color mixtures.

• Continuous Color Mixing: The spotlight enables continuous mixing of the individual colors, offering flexibility in creating custom lighting effects.

Overall, the TILLUME RGBW Spotlight provides a wide range of lighting options, making it a suitable choice for a diverse range of lighting need.

Technical Data:

- Family: LED Recessed Spotlight
- Material: Aluminium
- Color: White / Black / White-Black
- Protection Class: IP20
- Voltage: 24V( should be used with 24V driver)
- Max. Wattage: 7.5W
- Chip type: COB
- Color temperature: 2850K@Warm White Channel and 5000K@RGBW all Channel on
- Color rendering index CRI: >90
- Luminous flux: approx. 400 lm (combined)
- Max. current consumption: 0.31A
- Beam angle: 60 degrees
- Dimmable: Yes, up to 1% with the appropriate PWM dimmers
- Spots can be swiveled 20°
- Outside dimension: 85x85 mm
- Ceiling Cutout: Ø68mm
- Installation Location: Ceiling
- Area of ​​application: Indoor
- Style: Modern & Minimalist

Professional design for tasteful furnishings

Are you wondering how many dimmable LED recessed spotlights you need for a room? For a living room or hallway with a size of approx. 10 m², you should use 3 recessed spotlights. For work rooms, the kitchen or a bathroom of the same size, we recommend 6 or 7 recessed spotlights.

The guideline value is a ceiling height of 2.60m and an illuminance suitable for the basic lighting at table height (300 lux warm white).
