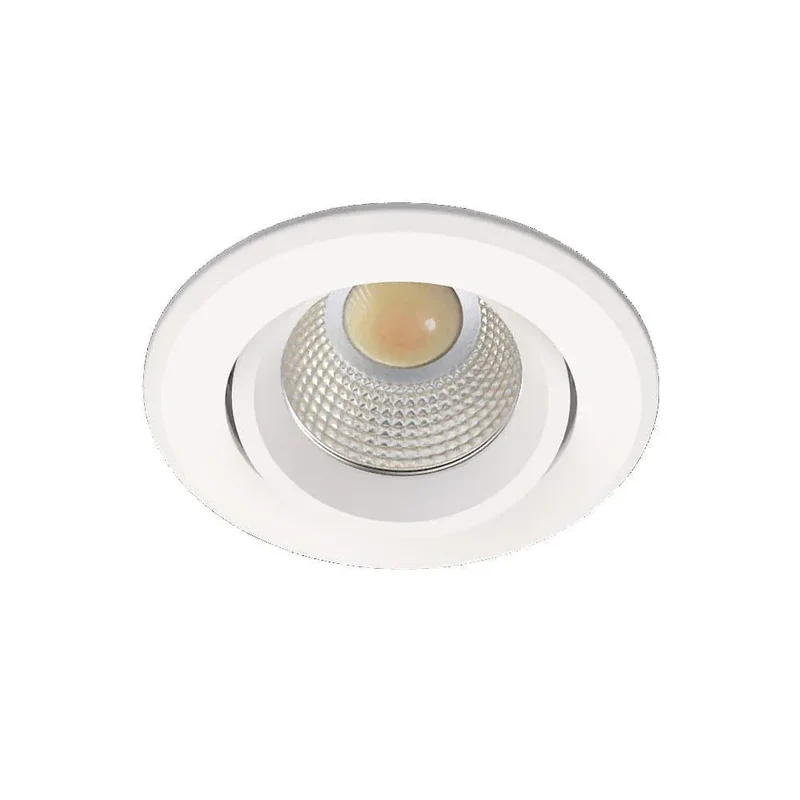

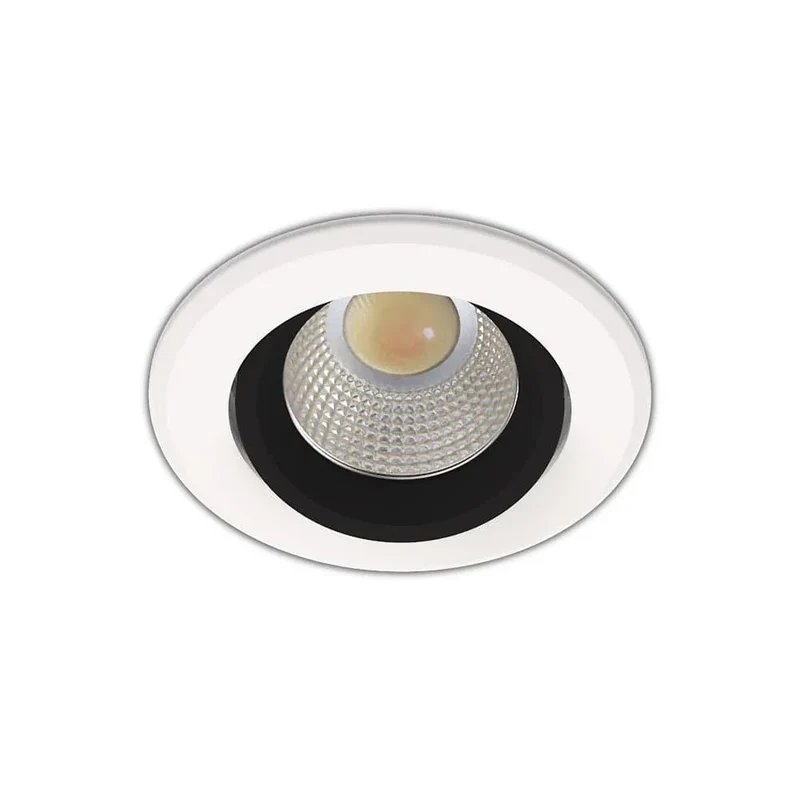

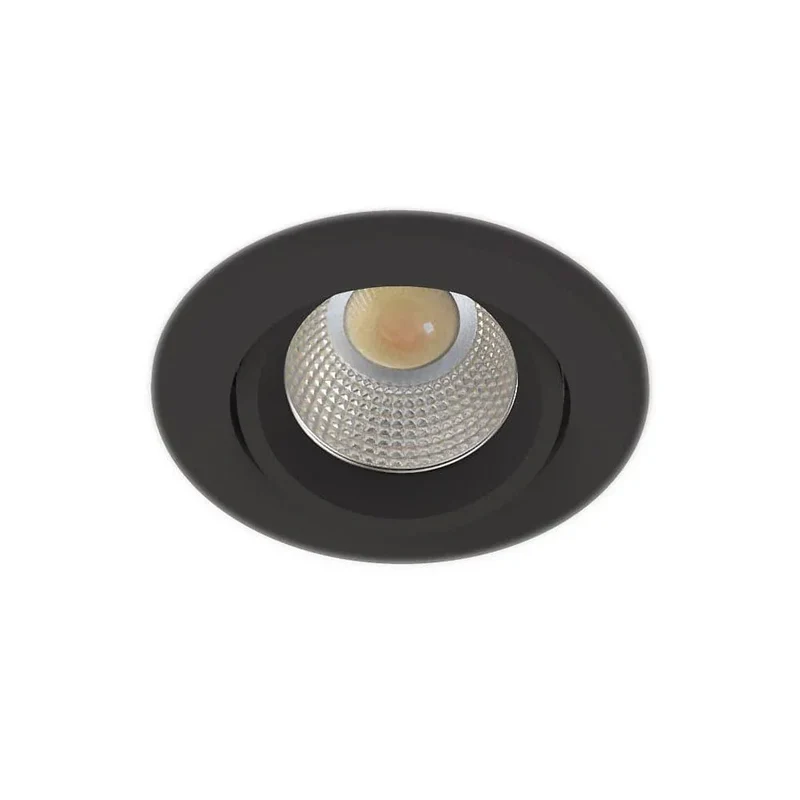

Tunable White 4+4W, 24V Dimmable, LED Recessed Round Spotlight

Deep Tunable White 4+4W 24V Dimmable PWM LED Recessed Round Spotlight  For LED Module Ceiling Spotlight

Compared with standard LED Ceiling Spot light, TILLUME tunable white downlights provide an unparalleled degree of freedom for users to adjust the lighting effects they need. Users can change the color temperature while maintaining the brightness level, and vice versa. Users can choose their preferred color temperature range, power, or fixture design according to their needs. Our tunable white downlights typically cover color temperature ranges from 2200K to 6500K, all with CRI 90+ color rendering. Typical rated power is 4+4W, 6+6W, and 8+8W. Our dynamic lighting solutions, would control the tunable white downlights.

Technical Data:

• Family: LED Recessed Spotlight
  - Material: Aluminium
  - Color: White / Black / White-Black
  - Protection Class: IP20
  - Voltage: 24V( should be used with 24V driver)
  - Wattage: 4+4W
  - Chip type: COB
  - Color temperature: 2200K-6500K
  - Color rendering index CRI: >90
  - Luminous flux: approx. 710 lm (combined)
  - Max. current consumption: 0.33A
  - Beam angle: 60 degrees
  - Dimmable: Yes, up to 1% with the appropriate PWM dimmers
  - Spots can be swiveled 20°
  - Outer Diameter: Ø85mm
  - Ceiling Cutout: Ø68mm
  - Installation depth: 55mm
  - Area of application: Indoor
  - Style: Modern & Minimalist

Professional design for tasteful furnishings

Are you wondering how many dimmable LED recessed spotlights you need for a room? For a living room or hallway with a size of approx. 10 m², you should use 3 recessed spotlights. For work rooms, the kitchen or a bathroom of the same size, we recommend 6 or 7 recessed spotlights.

The guideline value is a ceiling height of 2.60m and an illuminance suitable for the basic lighting at table height (300 lux warm white).
