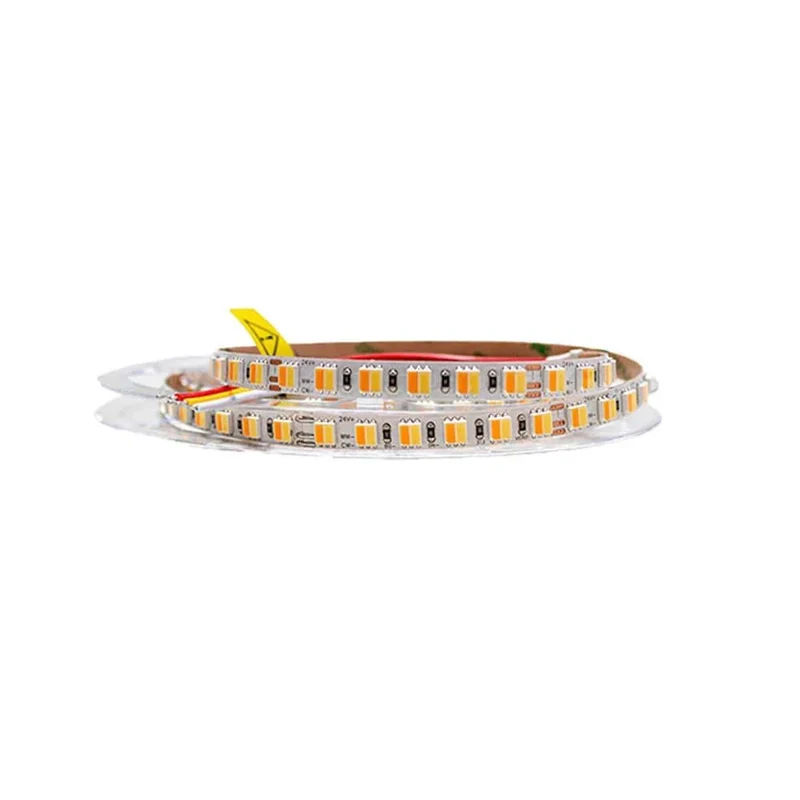

Tunable White LED Flexible Strip | CRI90 24V DC 9+9W/m IP20

Tunable White 24V LED Flexible Strip | 2 colors in 1 LEDs

Feature

TILLUME deep tunable white LED light bar enables an unprecedented color temperature spectrum from 2200 K to 6500 K, ensuring the best possible light color in every application.

- "tunable white" (individual adjustment of brightness and color temperature),
- "dim2warm"
- Circadian rhythm color gradient throughout the day, representing healthy light color (HCL) suitable for biological rhythms.
- Just bright daylight during the day and a comfortable warm color temperature at night

All these functions can be easily implemented with suitable KNX or DALI dimmers. In addition, these stripes are also suitable for PWM dimmers.

The LED strip has 3M tape on the back for easy on-site installation. Flexible stripes can be easily separated with scissors at designated points and reused in new feeds.

Technical Specifications:

Operating voltage: 24V DC
Max. power consumption: 18 W/m （9W Warm White + 9W Cold White）
Luminous flux: 1200 lm/m @ CW+WW
Color Temperature: 2200 - 6500K
Color rendering index CRI: >90 Ra
Beam angle: 120 degrees
Dimmable: yes, up to 0.1% with the appropriate PWM dimmers
Number of LEDs per segment: 6
Pitch: 58.8mm
Operating temperature: -20 degrees Celsius to +60 degrees Celsius
Storage temperature: -20 degrees Celsius to +60 degrees Celsius
Degree of protection: IP20
Dimensions: 5000 x 8 x 4mm

Operated With KNX System

Controller by MDT TECHNOLOGIES

Avaliable for the item as below
AKD-0424R.02
AKD-0424R2.02
AKD-0424V.02
AKD-0324V.02
AKD-0224V.02

Warm Tips: When you use below dimmer and want to the reach the high brightness, we suggest you close balance wattage function in software.

Operated With DALI System

Controller by LUNATONE

Avaliable for the item as below
DALI LED Power Supply(DT8):
89453849-CWW-24V
DALI LED Dimmer (CV, DT8):
89453836(4A)
86458673(8A)
89453838(10A)
89453841(16A)
89453841-HS(16A DIN Rail)
DALI 2Ch LED Dimmer (CV, DT6):
89453827
89453833
86459561
89453830
8945380-HS
