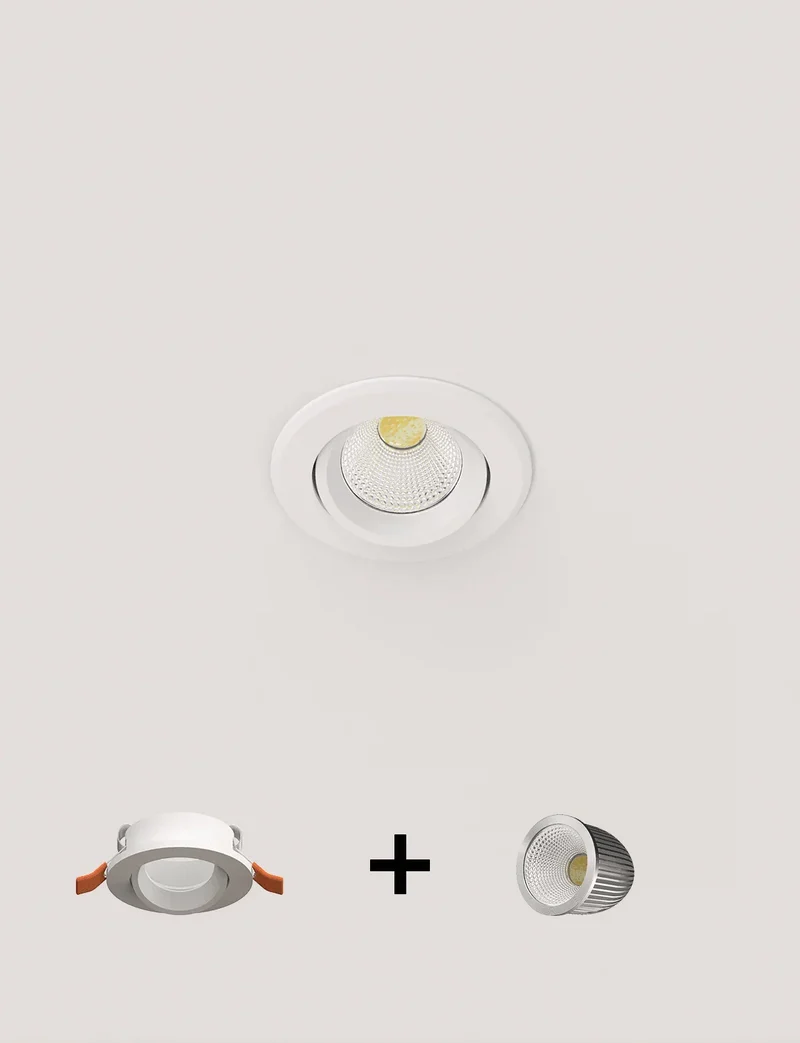

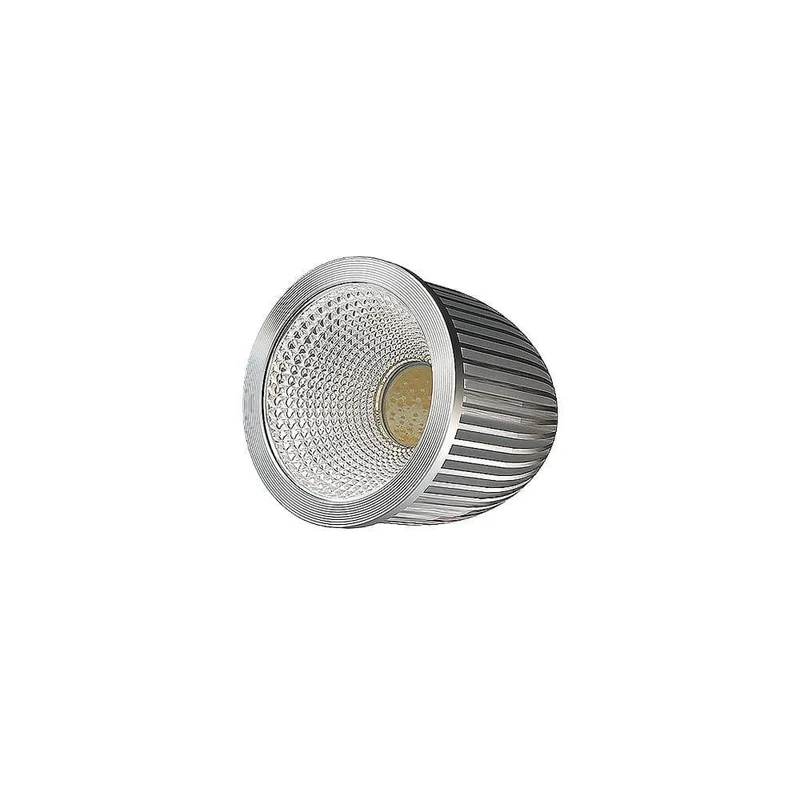

Tunable White LED Spot | 60° Ra90 2200-6500K 24V 6W+6W

Deep Tunable White MR16 Style LED Spots  | 6W+6W Wattage Balance

Feature

This item is specialized design by the one who want the best effect of mixture light when spots is dimming. we use lastest COB technology, in order to make spots have the best effect. Two color LEDs staggered distribution create most average light spot.

TILLUME Deep Tunable White 6+6W LED Spot enables a previously unprecedented color temperature range from 2200 K to 6500 K and thus ensures the optimum light color in every application.

1. Classic "tunable white" (the separate adjustment of the brightness and the color temperature)
2. Circadian color gradient throughout the day, the healthy one, the biorhythm adapted light colors
3. Bright daylight during the day and a cozy warm color temperature in the evening

Technical Data

Operating voltage: 24V DC
Max. current consumption: 0.25A
Max. power consumption: 6 W
Luminous flux: approx. 480 lm (combined)
Color temperature: 2200K - 6500K
Color rendering index CRI @2200K/6500K: >90 Ra
Color rendering index CRI @4000K: >95 Ra
Power 6W (6W WW+ 6W CW)
Beam angle: 60 degrees
Dimmable: Yes, up to 1% with the appropriate PWM dimmers
Chip type: COB
lifetime: >50,000 hours
Operating temperature: -25 degrees Celsius to +60 degrees Celsius
Storage temperature: -40 degrees Celsius to +80 degrees Celsius

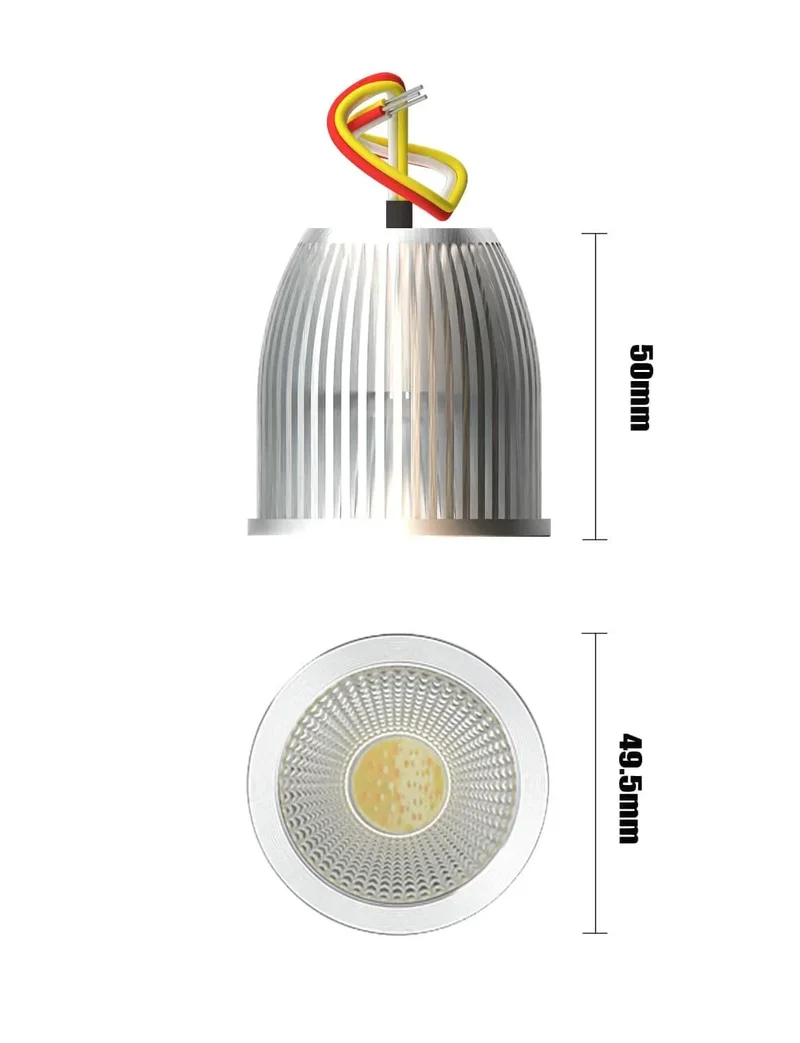

Dimensions: 50 mm with a diameter of 49 mm

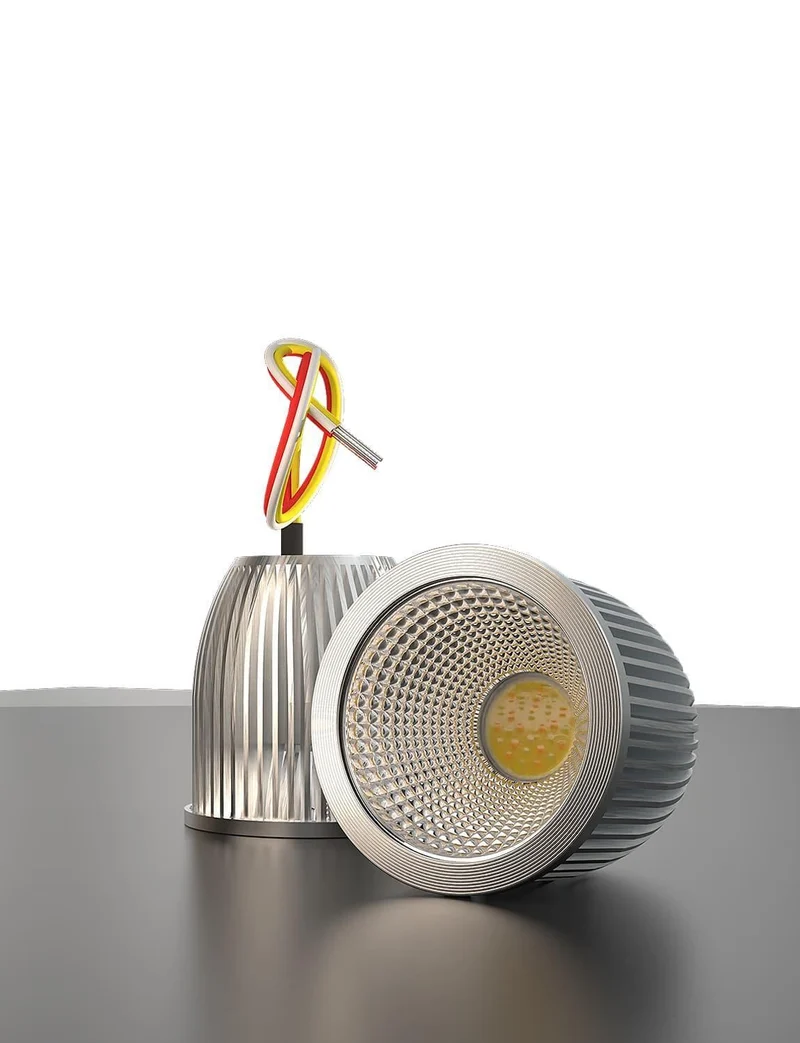

Connecting cable: 3 wires and 150 mm length

Operated With KNX System

Controller by MDT TECHNOLOGIES

Avaliable for the item as below
AKD-0424R.02
AKD-0424R2.02
AKD-0424V.02
AKD-0324V.02
AKD-0224V.02

Warm Tips: The spot must work with actuater which have wattage balance function. For KNX tunable wihte actuater, you should go to ETS software to configure output type. Take MDT AKD-0424R.02. actuator as a example, you need to choose constant brightness mode.

Operated With DALI System

Controller by LUNATONE

Avaliable for the item as below
DALI LED Power Supply(DT8):
89453849-CWW-24V
DALI LED Dimmer (CV, DT8):
89453836(4A)
86458673(8A)
89453838(10A)
89453841(16A)
89453841-HS(16A DIN Rail)

Warm tips: Usually you could install DALI DT8 actuater directly.
