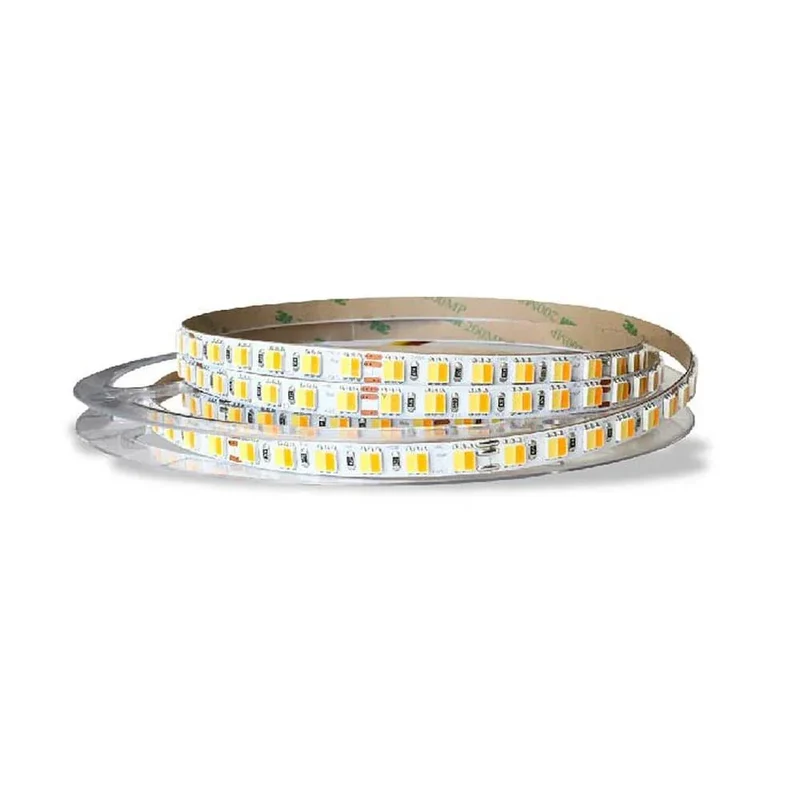

Tunable White LED Stripe DT8 | CRI90 24V DC 18+18W/m IP20

Tunable White 24V LED Flexible Stripe | DT8 Balance Control

Feature

TILLUME DTW LED Flexible Stripe enables an unprecedented color temperature spectrum from 2200 K to 6500 K, ensuring the best possible light color in every application.

- "tunable white" (individual adjustment of brightness and color temperature),
- "dim2warm"
- Circadian rhythm color gradient throughout the day, representing healthy light color (HCL) suitable for biological rhythms.
- Just bright daylight during the day and a comfortable warm color temperature at night

Use with Constant Voltage PWM dimmers operated by KNX, DMX, DALI, Loxone, Homematic or Dresden Electronics.

The LED strip has 3M tape on the back for easy on-site installation. Flexible stripes can be easily separated with scissors at designated points and reused in new feeds.

Technical Specifications:

Operating voltage: 24V DC
Max. power consumption: 18 W/m (18W Warm White+ 18W Cold White)
Luminous flux: 1200 lm/m
Color Temperature: 2200 - 6500K
Color rendering index CRI: >90 Ra
Beam angle: 120 degrees
Dimmable: yes, up to 0.1% with the appropriate PWM dimmers
Number of LEDs per segment: 6
Pitch: 58.8mm
Operating temperature: -20 degrees Celsius to +60 degrees Celsius
Storage temperature: -20 degrees Celsius to +60 degrees Celsius
Degree of protection: IP20
Dimensions: 5000 x 8 x 4mm

Operated With KNX System

Controller by MDT TECHNOLOGIES

Avaliable for the item as below
AKD-0424R.02
AKD-0424R2.02
AKD-0424V.02
AKD-0324V.02
AKD-0224V.02

Warm Tips: When you use below dimmer, you should open balance wattage function in software.

Operated With DALI System

Controller by LUNATONE

Avaliable for the item as below
DALI LED Power Supply(DT8):
89453849-CWW-24V
DALI LED Dimmer (CV, DT8):
89453836(4A)
86458673(8A)
89453838(10A)
89453841(16A)
89453841-HS(16A DIN Rail)
DALI 2Ch LED Dimmer (CV, DT6):
89453827
89453833
86459561
89453830
8945380-HS
